PE software architecture
Puppet Enterprise (PE) is made up of various components and services including the primary server and compilers, the Puppet agent, console services, Code Manager and r10k, orchestration services, and databases.

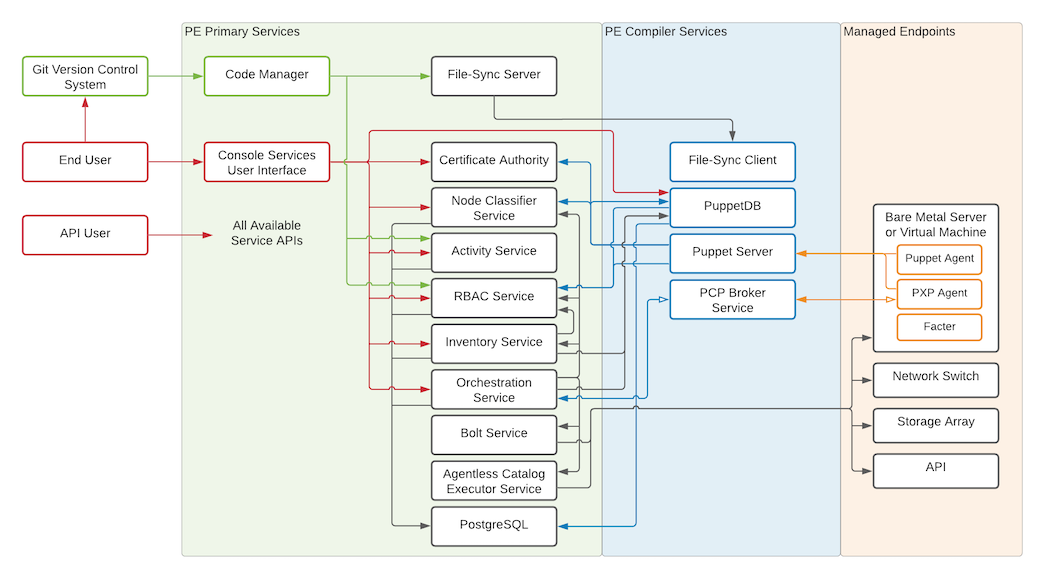

The following diagram shows the architecture of a typical PE installation.
